It is widely used in the processing of communication, medical equipment, electric tools, automation parts and 3C products.
- Rapid feed rate (X / Y / Z axis)：48/48/48m/min
- Three axis travel (X / Y / Z axis)：800/500/550mm
- The short nose spindle design has better strength and rigidity. The spindle can be equipped with annular water spray function to effectively prolong the tool life.
- The three-axis motor and screw adopt direct transmission design, without noise, clearance and vibration caused by belt or gear drive. The rapid displacement of the three-axis can reach 48m / min, which can greatly save non processing time.
- It is directly driven by an enlarged motor and its own brake servo motor, which is stable and reliable when performing high-speed milling or drilling.
规格参数表
| Item | Unit | DV-855+ |
| Travel | ||
| X axis travel | mm | 800 |
| Y axis travel | mm | 500 |
| Z axis travel | mm | 550 |
| Table size | ||
| Table area | mm | 1000x500 |
| Table Load | kg | 600 |
| T slot size (Wide x Number of slots x gap) | number | 18x5x80 |
| Spindle | ||
| Spindle Speed | rpm | 12000 |
| Spindle drive form | Direct driven | |
| Spindle motor | kW | 7.5/11 |
| Spindle taper | BT40 | |
| Distance for spindle nose to work table | mm | 120-670 |
| Spindle rate | ||
| Rapid feed rate (X,Y,Z) | m/min | 48/48/48 |
| Cutting feed rate | mm/min | 10000 |
| Tool magazine (Optional) | ||
| Tool capacity | Clamp arm type 24 | |
| Tool diameter / Adjacent tool space | mm | Φ80/Φ150 |
| Max. Tool length | mm | 300 |
| Max. Tool weight | kg | 8 |
| Accuracy | ||
| Positioning accuracy | mm | ±0.010 |
| Repeat positioning accuracy | mm | ±0.006 |
| Other | ||
| Controller | 0i-MF/M80 | |
| Air pressure demand | kg/cm2 | 6 |
| Power demand | kVA | 25 |
| Machine weight | T | 5 |
DV-850+ Table size(X*Y axis)
910x500mm / 1000x500mm
| Model | A | B | C | D | E | F | G | H | I | J | K | Number of T slot |
| DV-850+ | 1000 | 500 | 90 | 80 | 80 | 80 | 80 | 18 | 31 | 13 | 30 | 5 |

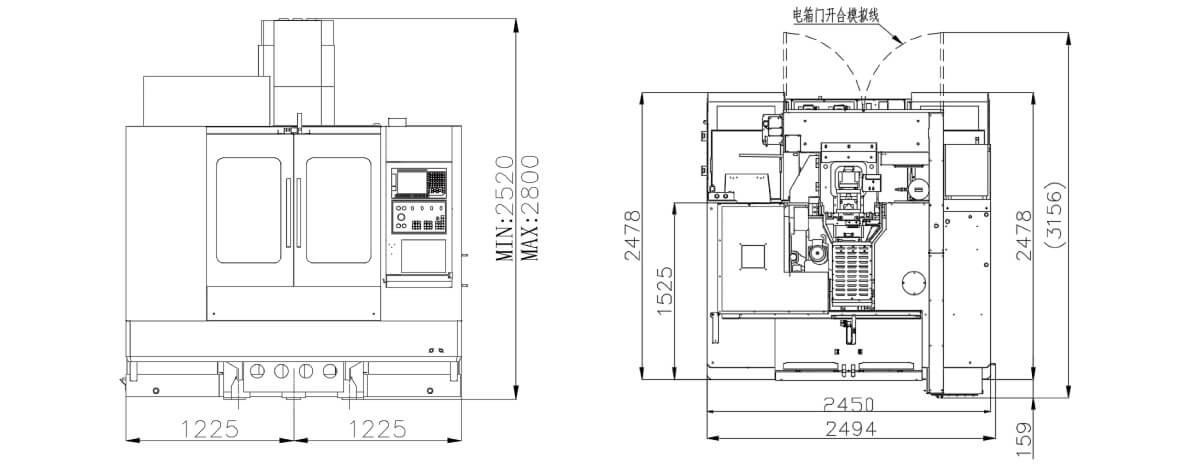

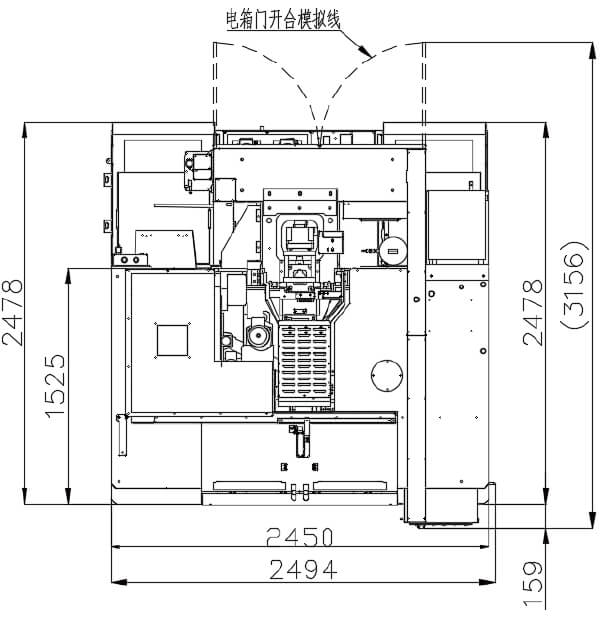

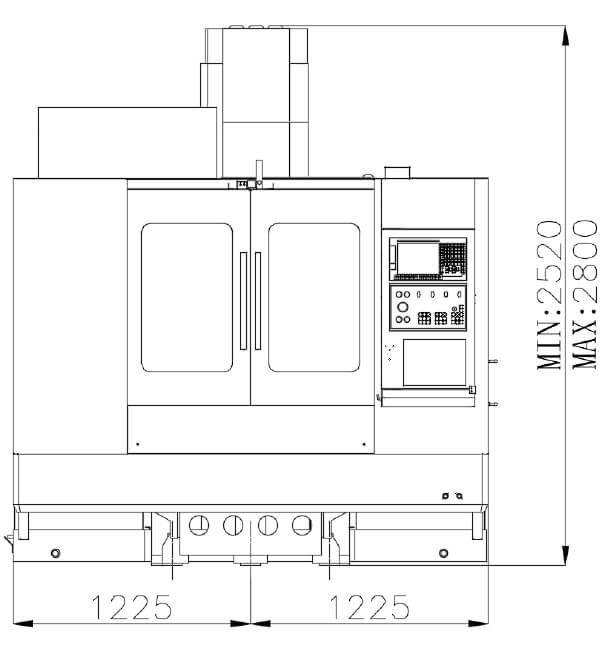

| Model | A | B | C | D | E | F | G | H |
| DV-855+ | 2500 | 395 | 1050 | 2520 | 2800 | 2455 | 345 | 550 |
